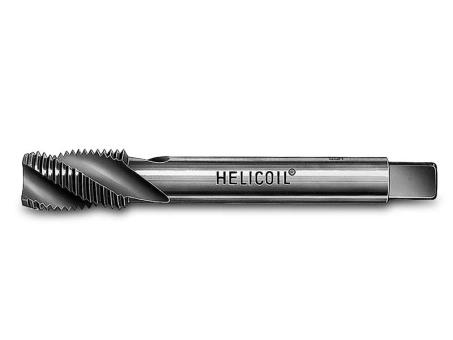

HELICOIL® machine taps

spiral fluted 40° | For blind holes
Thread type: Metric standard and fine thread | Product group: Accessories | Product type: 0141.5
HELICOIL® machine taps
Diameter (d)
M 2
M 2.5
M 3
M 4
M 5
M 6
M 8
M 10
M 12
M 16
Pitch (P)
0.4
0.5
0.7
0.8
0.45
1
1.5
1.25
1.75
2
Packaging unit (pcs.)
1
Please select a version to see prices and availability.
Type 0141.5 HELICOIL® machine tap to create holding threads for HELICOIL® thread inserts with metric normal and fine screw threads as per DIN 8140-2. The tap is suited for blind holes and blind holes with a deeper tap hole.

Properties:
• Spiral flute 40° right-hand spiral
• 2-3-pitch chamfer
• 10 % cutting angle
• For steels with 500–850 N/mm² strength
• Also for cast aluminium alloys with an Si content up to 10 %
• Tolerance class 5H (6H mod.)
Thread type:
Metric standard and fine thread
Product type:
Machine taps
Product group:
Accessories
Product type:
0141.5
