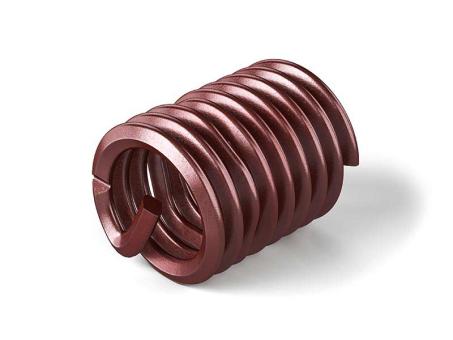

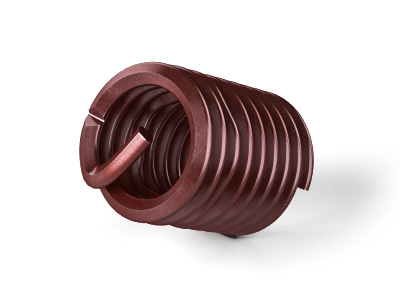

Filetti riportati HELICOIL® Plus Screwlock

screw-locking
Tipo di filettatura: Filettatura metrica standard | Materiale: Acciaio inox A2 | Superficie: colore rosso | Gruppo prodotto: Thread technology
Filetti riportati HELICOIL® Plus Screwlock
Diametro (d)
M 2
M 2,5
M 3
M 4
M 5
M 6
M 8
M 10
M 12
M 16
Lunghezza nominale t2
2
2,5
3
3,75
4
4,5
5
6
7,5
8
9
10
12
15
16
18
20
24
Confezione (pz.)
100
200
250
500
Selezione una versione per vedere prezzi e disponibilità.
Original - HELICOIL® Plus Screwlock thread insert

In addition to the classical coil thread insert, the HELICOIL® Plus Screwlock thread insert features a screw-locking area to lock a screw. Due to the resilient frictional locking, the prevailing torques are similar to ISO 2320. The prevailing torques comply with the requirements of technical delivery conditions stated in international standards.

The HELICOIL® Plus Screwlock thread insert can be used with screws of higher property classes (8.8 and higher). After the installation, the tang is broken off at the notch (predetermined breaking point). It is particularly suited for low-strength materials. Due to its red colouring, it can be easily distinguished also after the installation.

Advantages:
• High thread strength
• Screwlock
• Wear, corrosion and temperature resistance
• Tight fit
• Increase in quality and value
• Cost saving
• Easy installation
Versione del materiale:
A2, 1.4301, X5 CrNi1810
Tipo di filettatura:
Filettatura metrica standard
Materiale:
Acciaio inox A2
Standard:
DIN 8140
Superficie:
colore rosso
Versione prodotto:
Inserti filettati
Gruppo prodotto:
Thread technology
Conformità RoHS:
Materiale:
Acciaio inox
